Optical Boresight - O-AWBS

Download Brochure

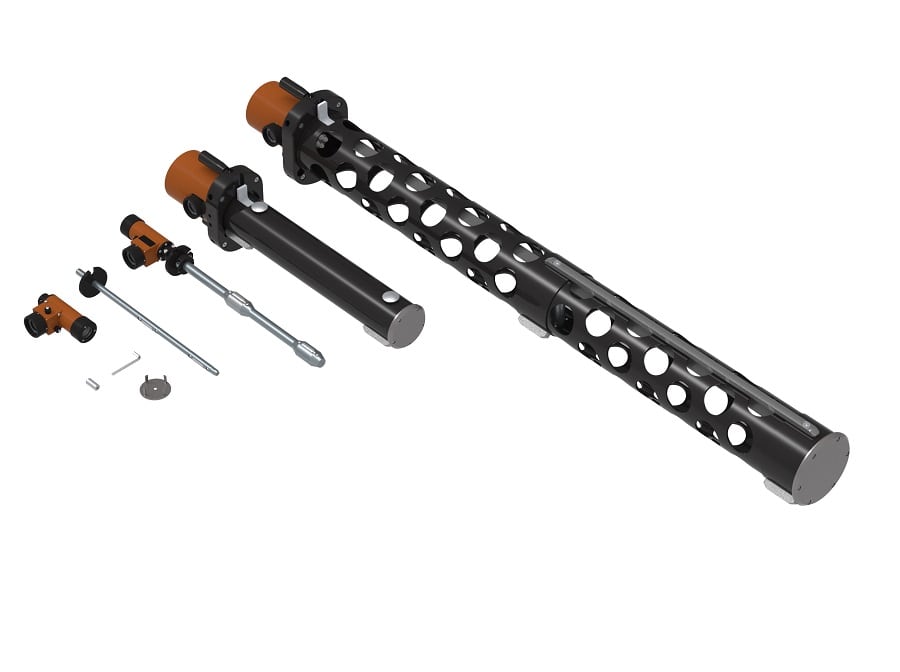

The O-AWBS is an optical boresight unit for accurately aligning guns to sights.

The unit provides an accurate, fast and reliable tool for boresighting, yielding a high first round hit probability.

Thanks to its rugged design, the O-AWBS retains its accuracy in a wide range of environmental conditions, making it an ideal boresighting instrument.

FeaturesSpecifications

Model:	O-AWBS x9.2
Magnification	x 9.2
Field of view	5 deg.
Focus range without adjustment	From 20m to infinity
Diopter range	22 mm
Accuracy	0.1mrad
Temperature range without focus adjustment	From -20 °C to +50 °C
Reticle type (1)	Cross, Line width 0.05 mrad
Dimensions and Weight	127x88x52 mm, 350 gr
Environmental conditions	High/low temperature, vibration, shock, rain, dust, fungus, salt fog, According to MIL-STD-810G
