Advanced Weapon Boresight - AWBS

Download Brochure
AWBS (608KB)

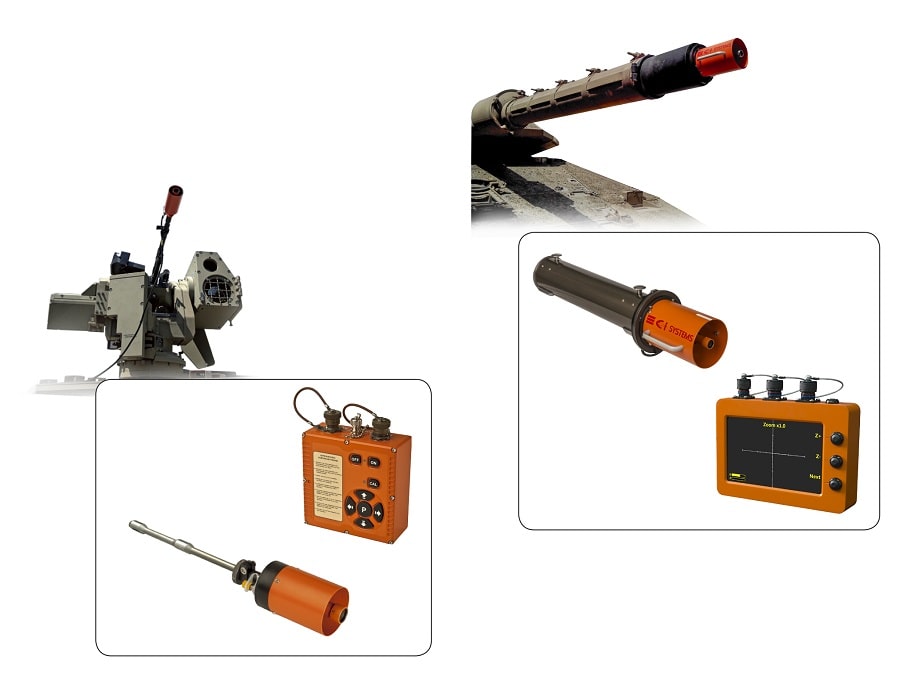

The AWBS is an electro-optical boresight tool, used for accurately aligning guns to the sighting system.

The AWBS utilizes a video camera to allow a single user to align a weapon to a sight from the safety of the gunner’s post.

The AWBS provides an easy to use, accurate, fast and reliable tool for boresighting, yielding a high first round hit probability.

The ease of use of the AWBS minimizes the time required to perform boresighting and maximizes the convenience and the frequency of the procedure.

It's rugged design retains the accuracy of the AWBS over a wide range of environmental conditions. The outstanding features, flexibility and versatility of the AWBS make it the perfect solution for boresighting.





For more information
FeaturesOptionsSpecifications
  • Based on a high-resolution camera
  • Electronically generated and adjustable cross hair
  • Various Interface Rod diameters to fit rifle/cannons barrels
  • Ruggedized system
  • Digital System with unified Electronic Unit & Monitor
  • User-friendly calibration
  • No focusing required at the operating range
  • Operates under severe field environment and Insensitive to environmental temperature
  • Lightweight and compact
  • Rod deflection compensation (7.62 & 12.7mm rods)
  • Optional video formats: Analog (PAL / NTSC), Digital, HD/SDI (other upon request)
  • Optional Ruggedized Battery Pack
  • Customer may use his own gun interface
  • Optional Interface to customer’s fire control system without the use of an electronic unit
  • Optional Interface with existing displays in a vehicle


AWBS 80

AWBS 120

AWBS 165

AWBS 200

Optical Focal length (1)

80 mm

120 mm

165 mm

200 mm

Optical Aperture

20 mm

16 mm

16 mm

17 mm

Optical Field of view

4.5 º

1.7 º

2.2 º

1 º

Boresight accuracy

<0.12 mrad

<0.10 mrad

<0.10 mrad

<0.10 mrad

Operation range

20m to ∞

50m to ∞

50m to ∞

60m to ∞

Video Format

Analog NTSC ,  Analog PAL ,  Digital HD (H.264 format),   HD-SDI

Reticle pattern

Programmable, user defined

Power supply

10 to 30 VDC

Cable length

User defined

Operational temp

-20°C to +50°C

Environmental

Humidity, Rain,  Sand,  Salt Fog,  Fungus,  Sun Radiation,  Transportation Vibration.  According to MIL-STD-810G

Storage temperature

-40°C to +70°C

Deliverables

Barrel Interface, Optical Camera unit, Electronic Unit and Monitor (optional for Analog system), Cables, Transport Case, Power Supply (optional), Rechargeable Battery Unit (optional)
