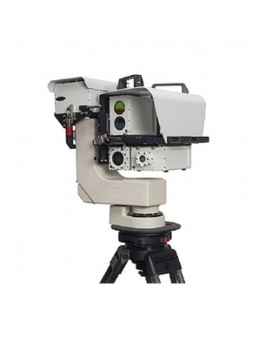

Infrared Threat Simulators – Laser based (IRTS-L)

The IRTS-L is a laser based modular, fully integrated, long-range electro-optical missile approach threat simulator for testing missile approach warning systems and training air crews in the operation of these systems.

The IRTS-L simulates the IR radiation profile of an approaching missile and is available as a single or dual wavelength MWIR system.

The IRTS-L is an addition to CI's line of long-range threat simulators that include broadband MWIR, SWIR and UVC versions along with multiple short-range testers.

For more information
FeaturesOptionsSpecifications
  • Designed for field use
  • Modular design. Each sub-unit packed in its separate purged housing with high repeatability mechanical interfaces
  • Factory boresight (Alignment of line of sight) of all optical units, test and calibration support equipment available

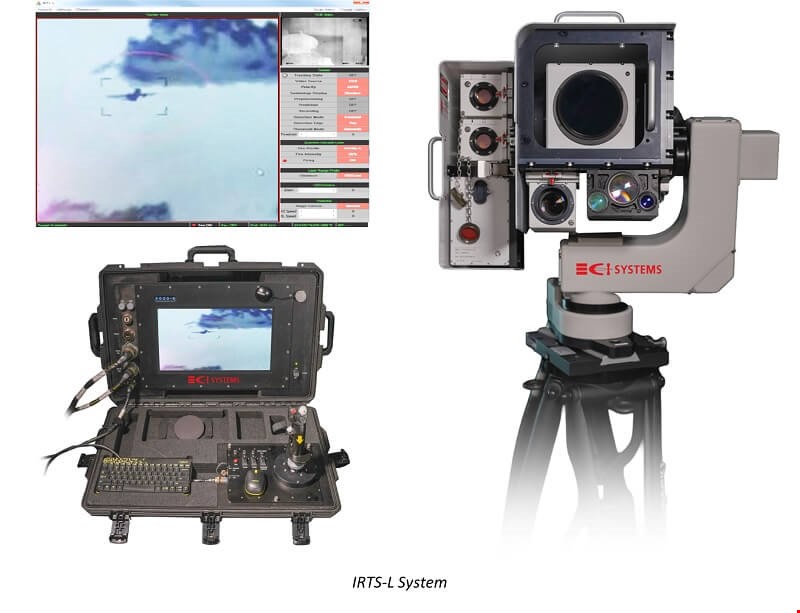

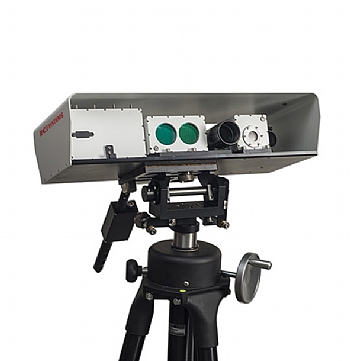

  • Configurable joystick and pedestal for easy alignment at field operation (see image below)
  • Built-in optical zoom CCD and optional FLIR for target acquisition and tracking
  • Included software for building and executing parametric simulations
  • Easily deployable – fully integrated and ergonomic operator’s station
  • Exceptional flatness of field of the radiating unit
  • Integrated LRF and video tracker
  • Optional – UV band
  • Support equipment for Boresight testing, GPS time stamping, Data backup
  • Integration of customer furnished IR Imager
  • Optional, UV band


Single Laser, IR

Dual Lasers, IR

Comments:

Laser Beam Divergence, mrad

<34 H x 14 V

Other FOV available upon request

Wavelength range (*)

MWIR “Red”

MWIR “Red” & “Blue”

Typical waveband of 100 nm

Max Radiant Intensity

1.2 KW/str

“Red” : 1.2 KW/str

“Blue” : 0.8 KW/str



Power Resolution

100 Hz



Output window diameter

25.4 mm



Pulse Width

200 nsec



Pulse Repetition Rate:

Power Modulation:

Signal Modulation:

2 MHz

5 KHz




Specifications:

Comments:

LRF Range

Up to 8 Km

Wavelength 1550 nm

LRF Beam Divergence

0.4 x 0.7 mrad

Class 1 Eye safe

CCD FOV

5° to 30°

Continuous optical zoom, auto-focus, auto-gain

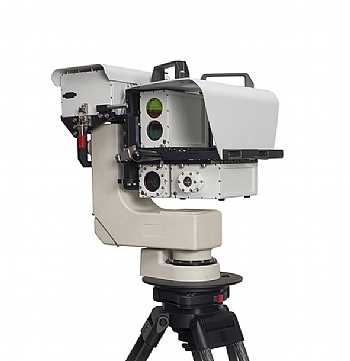

Motorized Pedestal Range

Azimuth : ±102°

Elevation: - 20° to + 60°



Motorized Pedestal Velocity

Azimuth: > 30°/sec

Elevation: > 10°/sec
